Wireless Waterproof IP69K DVR Reverse Camera AHD Receiver Black Color
Wireless DVR Reverse Camera 1080P Waterproof IP69K 90g AHD Receiver Black Color
Specification:
Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 120° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
Features:
1. First item AHD digital wireless car-charger design rear pull(combine with streaming rear mirror DVR)
2. Camera power cord designed with flat line,power by connecting license plate light.with 2 different types of brackets.long and short.

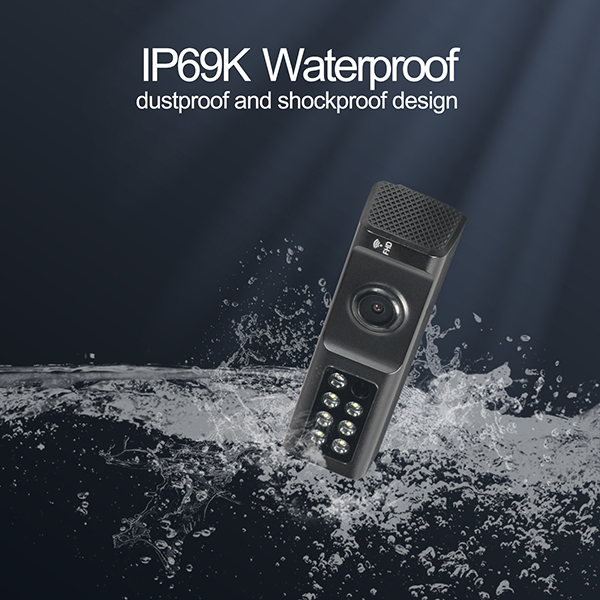

3. IP69K waterproof housing camera,Waterproof,dustproof and shockproof design.sturdy and durable,no need to worry driving at extreme weather.
4. 6 LEDs highlight lamp, Better to help reversing at night.can work for a long time,more convenient for driving record monitoring.
5. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting

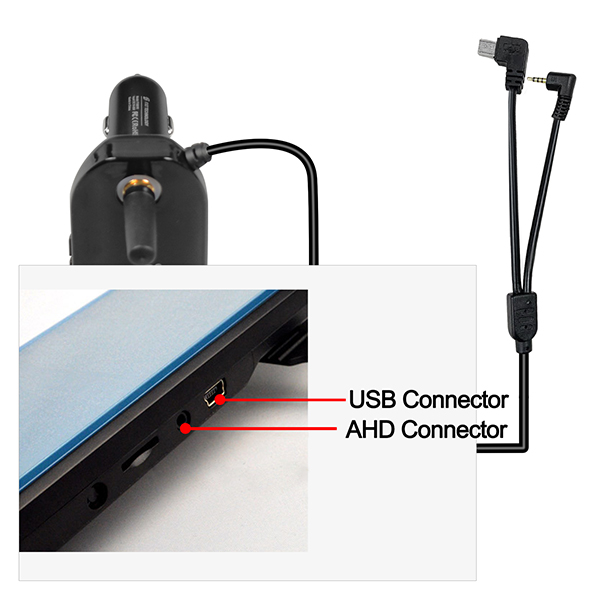

6. AHD Signal output(Apply to mirror DVR with AHD input or Screen with AHD input)
7. USB 5V Power supply output(Load design) with 3.5M data line, apply to different vehicles for wiring.
8. Apply to Vehicles: mini car, pickup, SUV,RV, Trailer RV.
Quality Assurance:
1. Waterproof test
2. Temperature test
3. Night vision test
4. Aging test
FAQ:
Commercial CE FCC ROHS Certificate Outdoor IP69K Waterproof
Q1. What is the MOQ?
A: 1~100 pieces according to the model.
Q2. What is the payment terms?
A: T/T,L/C at sight
Q3. What is the warranty time?
A:Usually 12 months from the date of purchase, it also depends on the type of the products.
All parts will be ensured the quality for 12 months.
